hi,

in case anyone is interested, i added pitch knobs for each of the sounds in my 707. the ones that share volume sliders also share pitch knobs, and the ride and crash have a single pitch control as
well. it's awesome; the sounds are 8 bit so it sounds all gritty and industrial when you pitch them down. it's not a simple mod, however:

1. build nine 555 (the cmos version) oscillators. these are the new clocks for the sounds.

2. very carefully disconnect pins 56, 57, and 59-64 of ic30 from the circuit board, or find some way to cut through the traces that go under the (surface mount) ic. i ended up slicing through the board with an exacto blade before i realized i could have desoldered the pins, cut the traces and resoldered the pins.

3. solder the outputs of the 555 oscs to the pins. this part is difficult because the pins are small and close together. i guess if you wanted you could just build a single oscillator and solder it to all the pins for a global pitch control. that might not work though, because i suspect that some of the sounds run at a different sample rate.

-structural integrity is extremely important here. if one of the pins breaks off, no more drum sound. it's best if you can have the pins soldered in their original places rather than sticking up in the air with the wires attached.

4. TEST.

5. find all of the connections between the original pins and the other circuitry that were severed when you cut the traces, and reconnect them to the original clocks. this part took the longest for me. you have to pore over the schematic and find the stuff that gets the clock signals. it sounds distorted and bent without these connections, and some sounds may disappear.

6. mount the pots.

or you could just go and sample its sounds and tune them up and down that way, but that would be easy. also, i tried connecting the oscillators to the pins while they were still connected to the circuit board and got all kinds of crazy noises that sounded way better than my rom-scrambling bends. it was like pitching the sounds and adding tones and messing with other circuitry that was also connected to the clocks. i might add this function to mine later.

tr-707 pitch mod mp3
tr-72707 pic

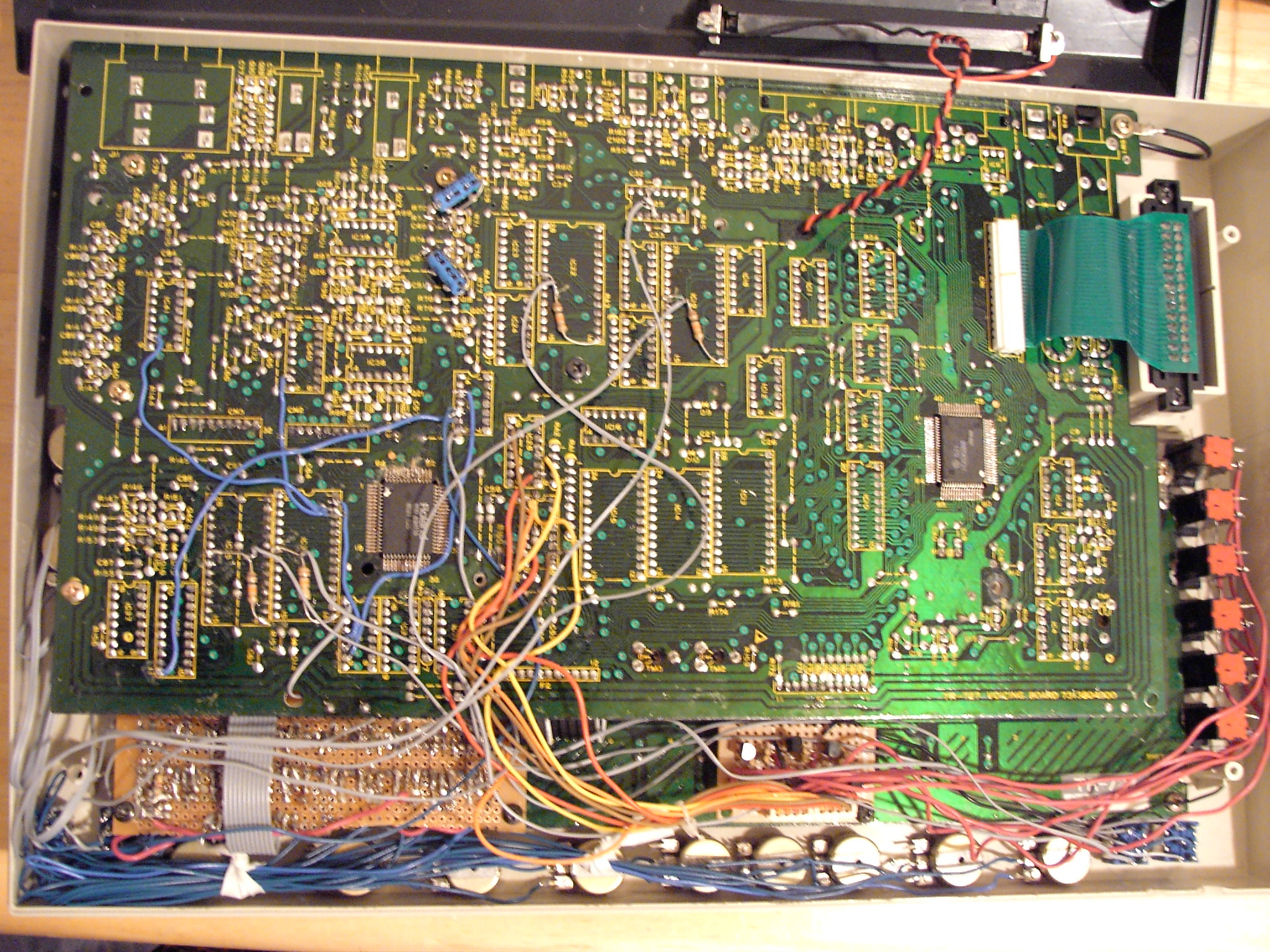

tr-72707 guts
